Descrizione

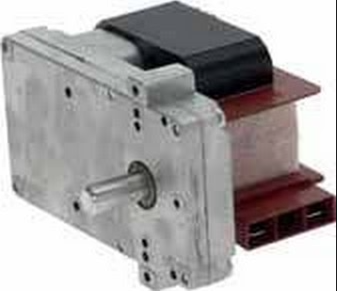

KENTA PELLET STOVE GEAR MOTOR
K9175002
- 1 RPM – MALE – TIME
- Shaft diameter 9.5 mm
- Heat-protected coil
- Original Kenta
- Clockwise rotation seen from the shaft side (on request it is possible to reverse the
rotation)
IMPORTANT: ALSO REPLACES THE GEAR MOTORS FOR PELLET STOVES OF THE SERIES
K911 !!! STOVES MOUNTING THIS GEARMOTOR … PASIAN – PALAZZETTI –
CLAM – EXTRAFLAME – AND MANY MORE …
K911 !!! STOVES MOUNTING THIS GEARMOTOR … PASIAN – PALAZZETTI –
CLAM – EXTRAFLAME – AND MANY MORE …
CONSTRUCTION FEATURES: The PELLET STOVE GEAR MOTOR
The gearbox housing is made of die-cast
zamak and incorporates the fixings for the application. The kinematic chain
of the gears consists of: motor shaft with helical teeth,
fast gears in special plastic materials and slow gears in
sintered steel. This system guarantees high reliability
allowing the K 911 gearmotors the possibility of applications in
cold environments (e.g. refrigerators) and hot environments (e.g. ovens). The box of the
reducer has 6 through fixing holes and 5 fixing holes
threaded with max. of 4 mm. AC motors
(B.C). The dimensions of the motors are fixed as regards the
width and height (61 x 61 mm) The windings of the coils are
made by means of an automatic system equipped with control
wire-stabilized tensioning. The electrical connections are
made using faston 6.3 x 0.8 applied with the innovative system a
seamless insulation perforation
zamak and incorporates the fixings for the application. The kinematic chain
of the gears consists of: motor shaft with helical teeth,
fast gears in special plastic materials and slow gears in
sintered steel. This system guarantees high reliability
allowing the K 911 gearmotors the possibility of applications in
cold environments (e.g. refrigerators) and hot environments (e.g. ovens). The box of the
reducer has 6 through fixing holes and 5 fixing holes
threaded with max. of 4 mm. AC motors
(B.C). The dimensions of the motors are fixed as regards the
width and height (61 x 61 mm) The windings of the coils are
made by means of an automatic system equipped with control
wire-stabilized tensioning. The electrical connections are
made using faston 6.3 x 0.8 applied with the innovative system a
seamless insulation perforation
