Descrizione

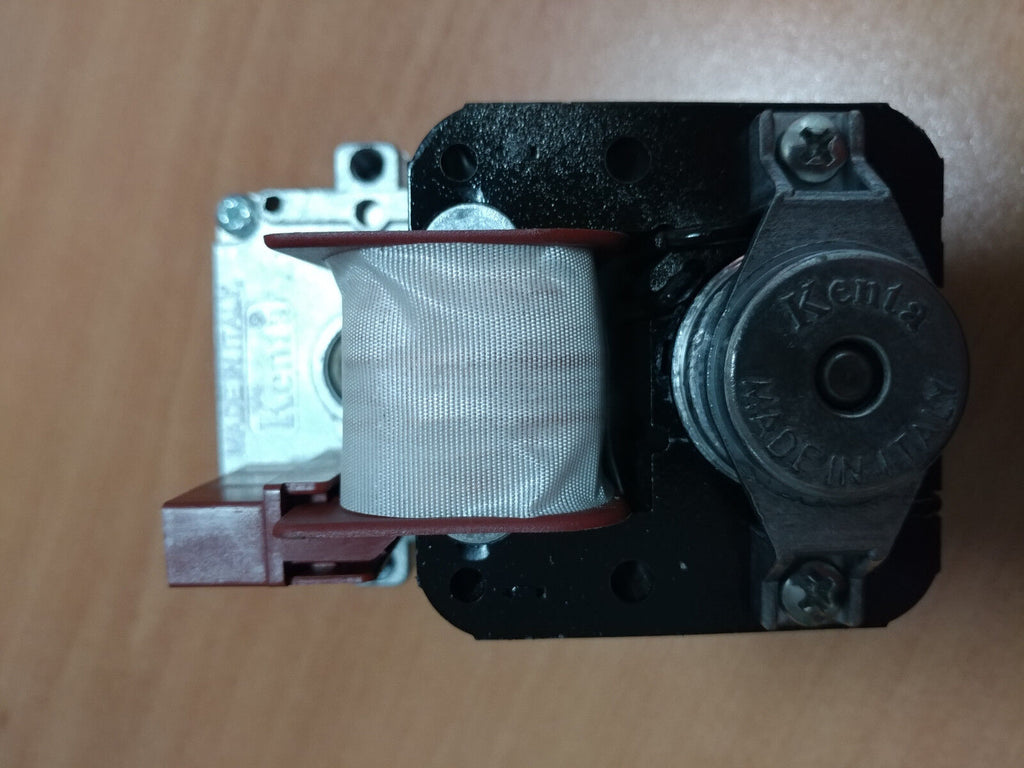

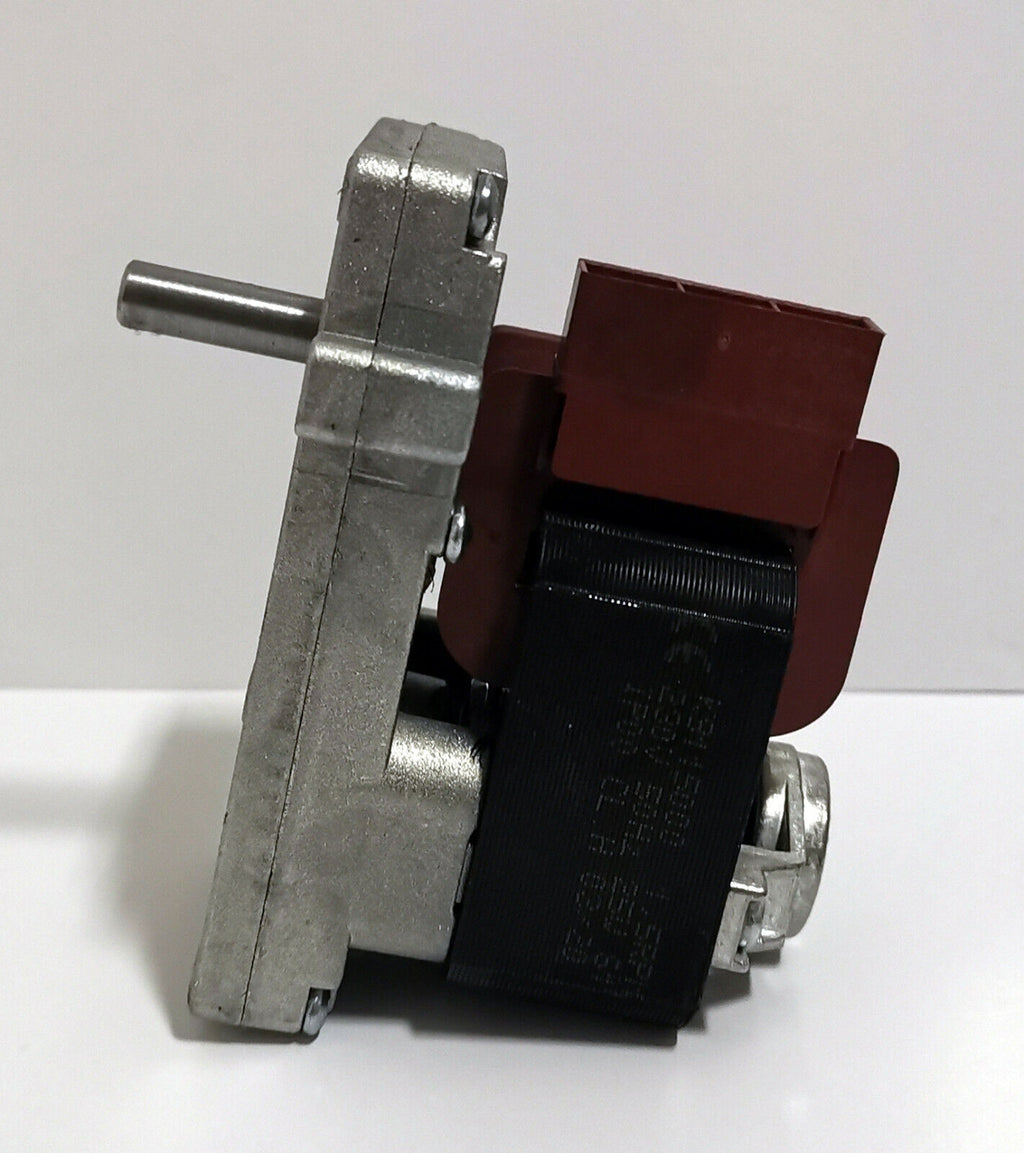

GEAR MOTOR for PELLET stoves KENTA K911
2.5 RPM-male-timetable
MADE IN ITALY
Important: our gear motors are ORIGINALS of Kenta s.r.l. — are exactly the ones present in your stoves when purchased.
The use of original spare parts is very important
Beware of imitations
Power supply: 220/230 V-50 Hz SINGLE-PHASE
GENERAL FEATURES:
The Motor-reducer is realized via a gear with helical teeth extractedon the motor shaft which in turn is held in place thanks to spherical self aligning bearings or double ball bearings which ensure accuracyof movement and silent operation.
CONSTRUCTION FEATURES:
• The pressure regulator.
The gear unit housing is made of die-cast zamak and incorporates the hardware for your application.
The power train of gears consists of: crankshaft with helical teeth, fastlens gears gear special sintered steel and plastics. This system ensures high reliability allowing 911 K Motors the possibility of applications in cold environments (e.g. refrigerators) and warm (eg ovens). Thegear unit housing includes 6 mounting holes threaded fixing holes through and 5 with maximum penetration 4 mm.
• Alternating current (AC) motors.
The size of the motors are fixed with regard to the width and height(61 x 61 mm)
The windings of coils are made through an automatic tension controlthread-stabilized.
The electrical connections are made through faston 6.3 x 0.8 appliedwith the innovative seamless insulation displacement (UL Amtronics system) that prevents false contacts.
